BOS-18
In standard form, the model BOS-18 Beam Observation system has a 18mm diameter active area MCP and P-43 phosphor screen assembly, housed within a 2.75″ (70mm) conflat flange with glass viewport. Electrical connections to the phosophor screen and MCP are made with MHV feedthroughs.
|
Optional Equipment
Extended Platform Mounts
The MCP/Phosphor screen assemblies can be mounted on an extended platform at a specific distance from the vacuum sealing surface or BOS window. This distance is specified by the customer (NOTE: Model BOS-40 is shown below, but model BOS-18 with extended platform will look similar).

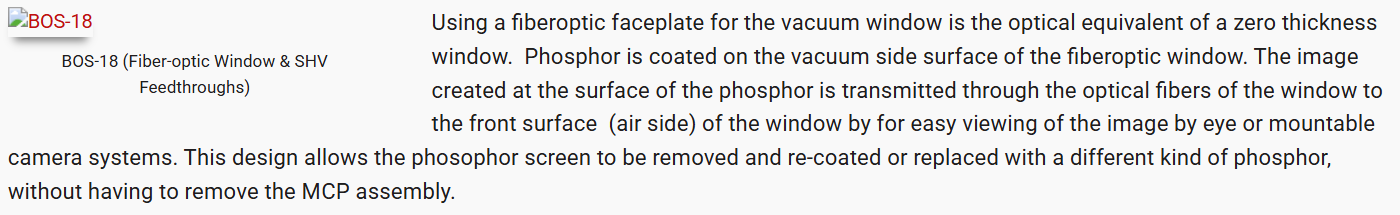

Coherent Fiberoptic Windows
