BOS-18

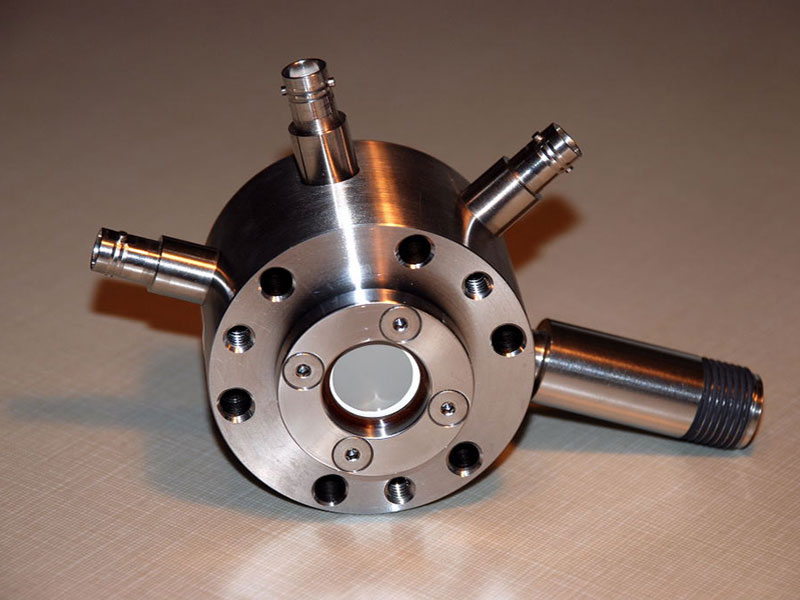

In standard form, the model BOS-18 Beam Observation system has a 18mm diameter active area MCP and P-43 phosphor screen assembly, housed within a 2.75″ (70mm) conflat flange with glass viewport. Electrical connections to the phosophor screen and MCP are made with MHV feedthroughs.
|
Product Overview
In standard form, the model BOS-18 Beam Observation system has a 18mm diameter active area MCP and P-43 phosphor screen assembly, housed within a 2.75″ (70mm) conflat flange with glass viewport. Electrical connections to the phosophor screen and MCP are made with MHV feedthroughs.

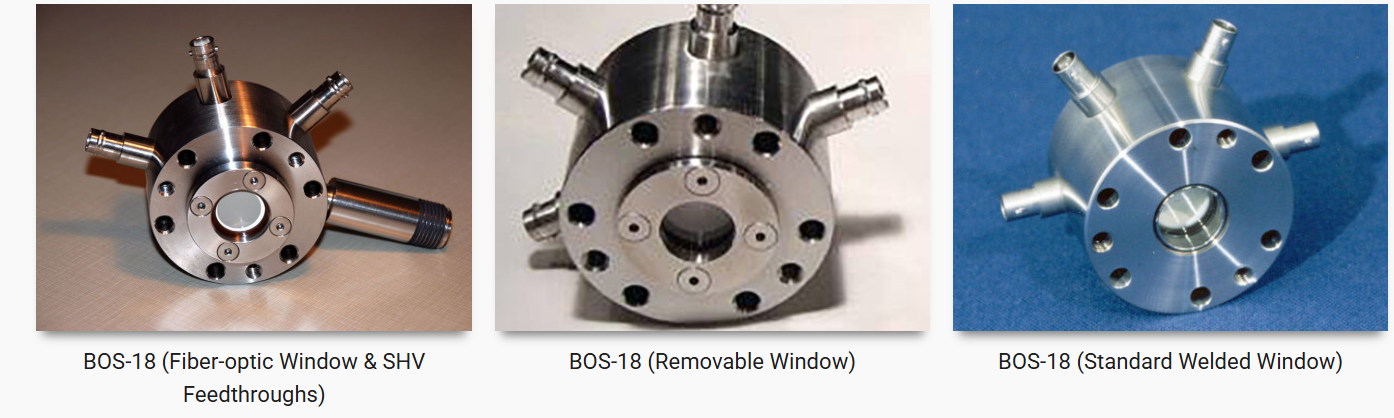

Optional configurations are discussed in detail within the product tabs and include dual MCP plates (chevron), SHV feedthroughs, fiberoptic windows, and CCD camera systems.
